CK-Marine Pump

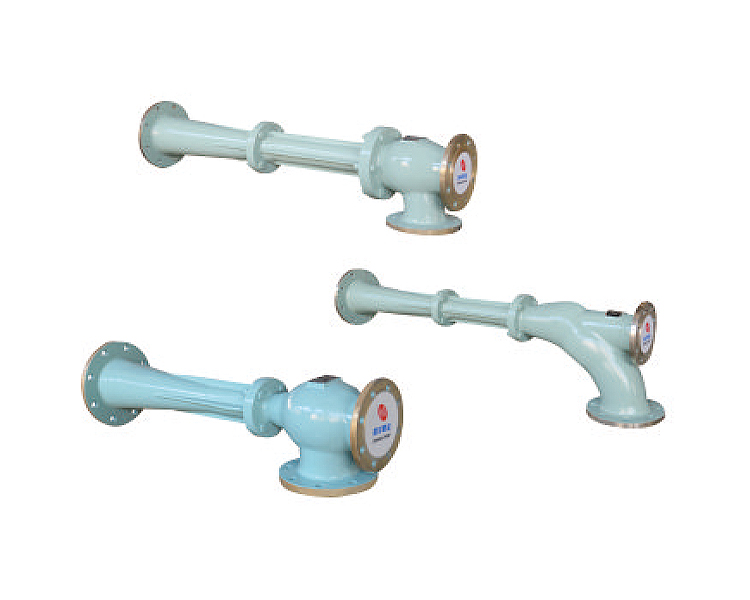

· 船用水喷射泵 Marine water jet pump

用干舰船排疏水系统，也广泛应用于石化、环保、水利、建材等行业，进行抽排海淡水，混合液体、河道疏浚、污水处理、输送粉体等。

◆流量范围: 5-800m³/h

◆排出压力: 0.05-0.35Mpa

This series of pumps applies in marine discharging system, petrochemical, environment protection, hydro and building materials industry for sea water, fresh water and mixed liquid suction and discharging, river dredging, sewage treatment and power transportation.

◆Capacity range: 5-800m³/h

◆Discharging pressure: 0.05-0.35MPa

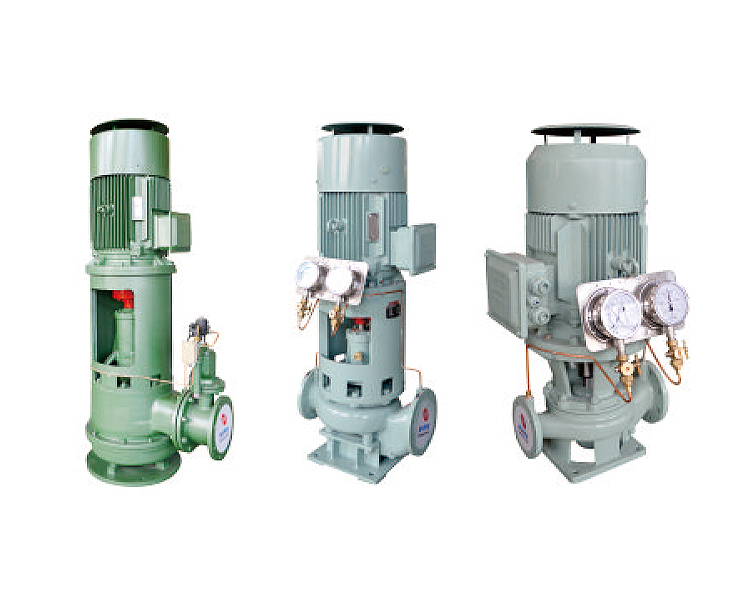

· CLH系列船用立式海水泵 CLH series marine vertical sea water pump

用干各种船舶、军舰作为消防泵、舱底泵、压载泵、冷却泵、排水泵，亦可作为海水淡化装置及各种水柜装置作配套给水泵，以及石油化工管道、冷热水循环系统及高层建筑生活用水的增压泵。

◆流量范围: 3-4800m³/h

◆扬程范围: 8-180m

◆最大配用功率: 800kW

This series of pumps works as fire pump, bilge pump, ballast pump, cooling pump and discharging pump for all kinds of ships and warships. This series of pumps also works as matched feed pump for sea water desalting equipment and various tank equipments, or as booster pump for petrochemical pipes, cold and hot water circulatory system and domestic water of high-rise buildings.

◆Capacity range: 3-4800m³/h

◆Head range: 8-180m

◆Max. matched power: 800kW

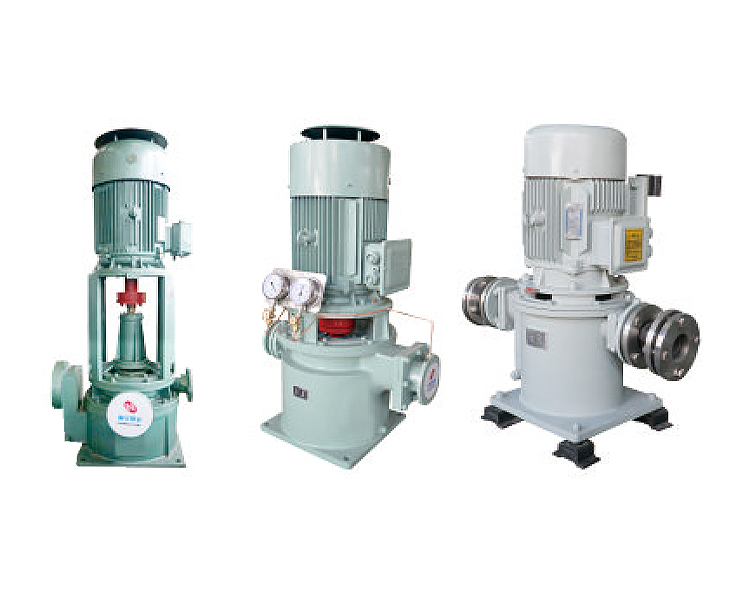

· CLZ系列船用立式自吸泵 CLZ series marine vertical self-priming pump

自吸性能好（不需外加自吸装置），用作舱底、压载、消防泵以及海、淡水冷却和卫生水泵。本系列大规格泵可作为缉私水炮、消防炮配套工作泵。

◆流量范围: 5-500m³/h

◆扬程范围: 14.5-150m

◆最大配用功率: 315kW

This series of pumps has good performance of self-priming (without additional self-priming equipment) which works as bilge pump, ballast pump, fire pump, sea water/fresh water cooling pump and sanitary water pump. Pumps with large size of this series work as matched working pump for anti-smuggling water cannon and fire-fighting cannon.

◆Capacity range: 5-500m³/h

◆Head range: 14.5-150m

◆Max. matched power: 315kW

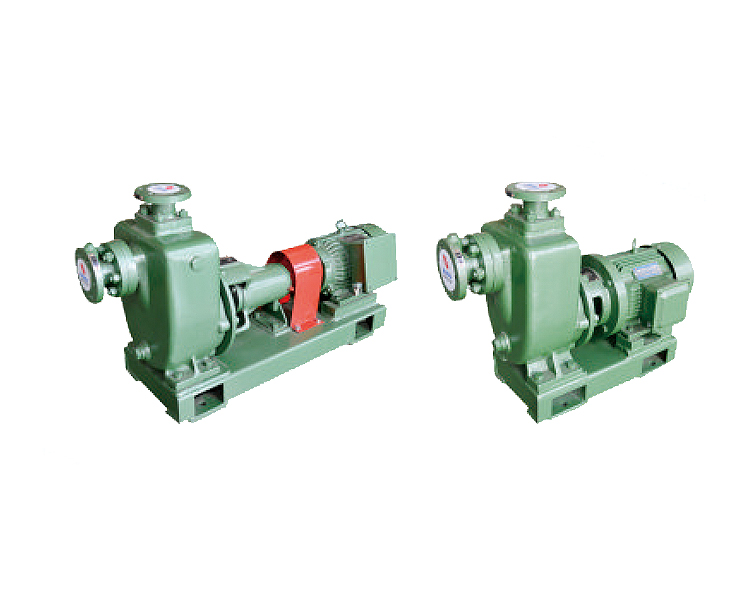

· CWZ系列船用卧式自吸离心泵 CWZ series marine horizontal self-priming centrifugal pump

自吸性能好（不需外加自吸装置），适用于船舶冷却泵、卫生泵、消防泵、舱底压载泵等。

◆流量范围: 8-550m³/h

◆扬程范围: 15-120m

◆最大配用功率: 315kW

This series of pumps has good performance of self-priming (without additional self-priming equipment), and works as marine cooling pump, sanitary pump, fire pump, bilge ballast pump.

◆Capacity range: 8-550m³/h

◆Head range: 15-120m

◆Max. matched power: 315kW

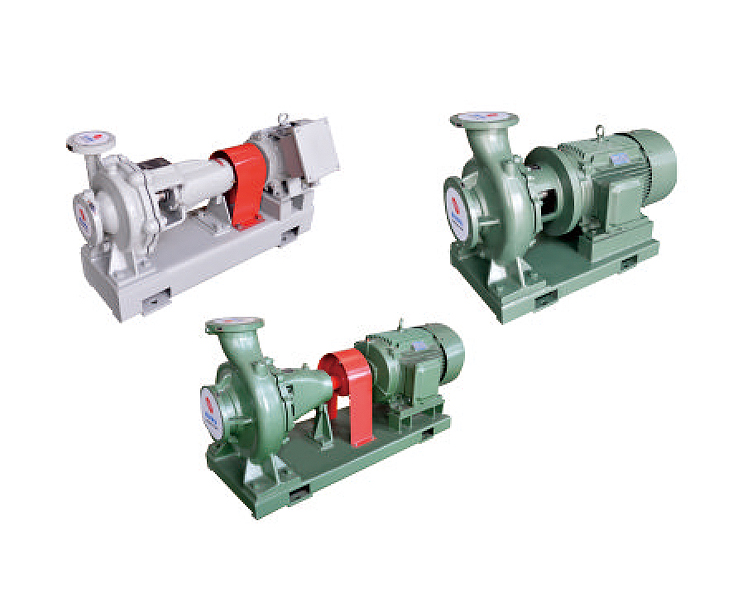

· CWL+CIS系列船用卧式离心泵 CWL and CIS series marine horizontal centrifugal pump

结构紧凑、体积小、可靠性好，适用于舰船作消防泵、冷却泵、日用水泵等。当配带自吸装置时，可作舱底泵使用。也可用于工厂、矿山、城市给水和农村灌溉。

◆流量范围: 4-600m³/h

◆扬程范围: 4-200m

◆最大配用功率: 280kW

This series of pumps works as marine fire pump, cooling pump, daily water pump with advantages of compact structure, small volume and good reliability When fitted with self-priming equipment, it wo『ks as bilge pump. This series of pumps applies in factory, mine, city water supply and country irrigation.

◆Capacity range: 4-600m³/h

◆Head range: 4-200m

◆Max. matched power: 280kW

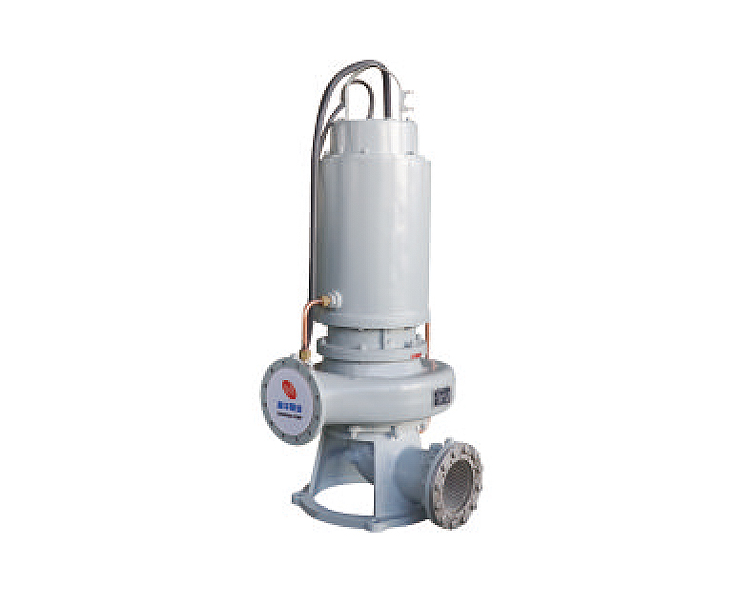

· CQX (W) 型船用潜水电泵 CQX(W) series marine submersible electric pump

具有体积小，重量轻，移动方便等优点。适用于输送船舶污水及紧急排除舱底积水，具有较强的排污能力，亦可作为城市排污之用。

◆流量范围: 8-180m³/h

◆扬程范围: 7-60m

◆最大配用功率: 160kW

This series of pumps has the advantages of small volume, light weight and easy movement which applies to delivery ship sewage and discharge emergency bilge water. This series of pumps has great ability of sewage discharging, which applies to discharge sewage in city.

◆Capacity range: 8-180m³/h

◆Head range: 7-60m

◆Max. matched power: 160kW

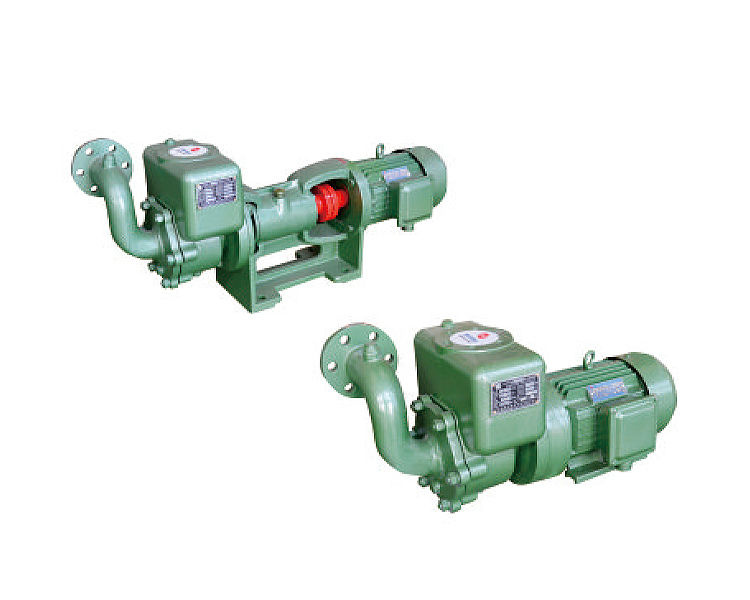

· CWX系列船用自吸离心旋涡泵 CWX series marine self-priming centrifugal vortex pump

具有自吸性能好，使用寿命长体积小等特点，适用于供船舶装置饮水、洗涤及卫生用的淡水和海水泵。

◆流量范围: 3-10m³/h

◆扬程范围: 35-40m

◆最大配用功率: 18.5kW

This series of pumps has advantages of good self-priming performance, long service life and small volume. This series of pumps works as fresh water and sea water pump for drinking, washing and sanitary in ship equipment.

◆Capacity range: 3-10m³/h

◆Head range: 35-40m

◆Max. matched power: 18.5kW

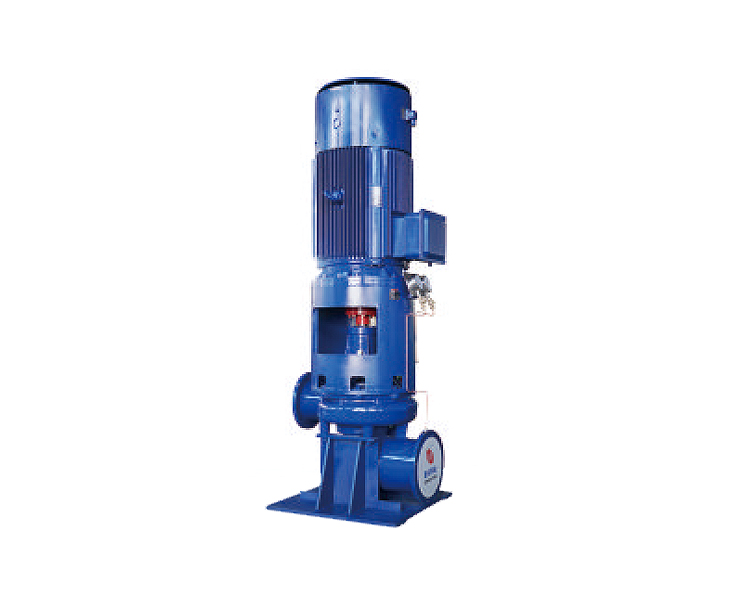

· CLH型高效脱硫循环泵 CLH series efficient desulfuration circulation pump

为船用脱硫装置（废气洗涤系统）设计的循环水泵，该型泵适用于开式系统，闭式系统以及混合系统的脱硫装置。

◆流量范围: 100-1500m³/h

◆扬程范围: 30-120m

◆最大配用功率: 500kW

This series of pumps is the circulation pump designed for marine desulfuration equipment (exhaust gas scrubber system). This series of pump applies to desulfuration equipment in open type system, closed type system and combined system.

◆Capacity range: 100-1500m³/h

◆Head range: 30-120m

◆Max. matched power: 500kW

· DNW船用卧式凝水泵 DNW series marine horizontal condensate pump

主要用于船舶海水淡化装置，抽送冷凝水，亦可用于其他用途用水泵。

◆流量范围: 0.1-80m³h

◆扬程范围: 10-40m

◆最大配用功率: 15kW

◆真空度: 95%

This series of pumps mainly applies in marine sea water desalting equipment topump condensate water. This series of pumps works as water pump for otherpurposes.

◆Capacity range: 0.1-80m³/h

◆Head range: 10-40m

◆Max.matched power: 15kW

◆Vacuum degree: 95%

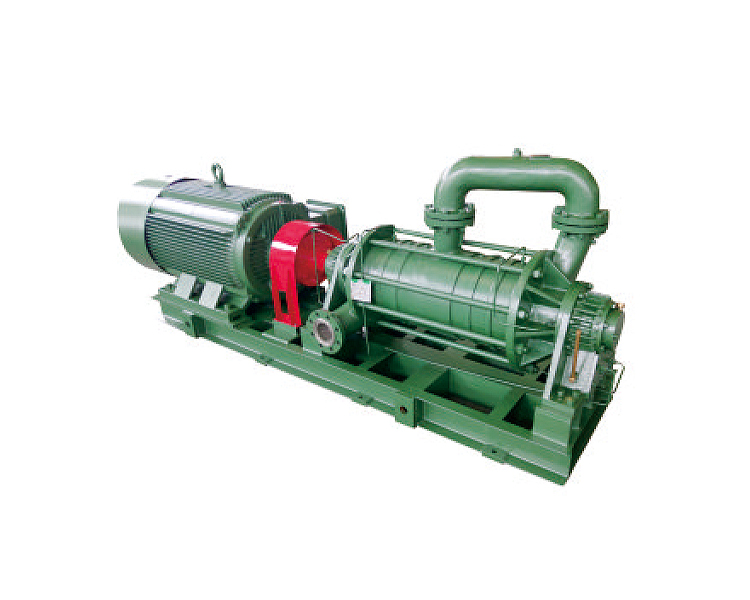

· CWD型船用多级离心泵(高压冲桩泵)组 CWD series marine multi-stage centrifugal pump (high pressure washing out pile pump) unit

多级离心泵适用于输送清水(杂质<1%，颗粒度<1mm)及物理化学性质类似于清水的其他液体。高压冲桩泵是船舶平台冲桩系统中的关键设备。在拔桩作业前，冲刷桩靴表面的海床土层，消除桩靴与土层之间吸附阻力，从而便于将靴从海床土层中拔出。

◆流量范围: 3.75-1000m³/h

◆扬程范围: 75-700m

◆最大配用功率: 1500kW

This series of pump applies to deliver clean water (foreign matters content<1 %, and the particle degree<1mm) and other liquid similar with clean water physically and chemically.This series of pump is the key equipment in high pressure washing out pile system. Before pile pulling operation, wash the seabed soil on the surface of pile shoe to remove the adsorption resistance between pile shoe and soil, which makes pulling out pile shoe from seabed soil easier.

◆Capacity range: 3.75-1000m³/h

◆Head range: 75-700m

◆Max. matched power: 1500kW

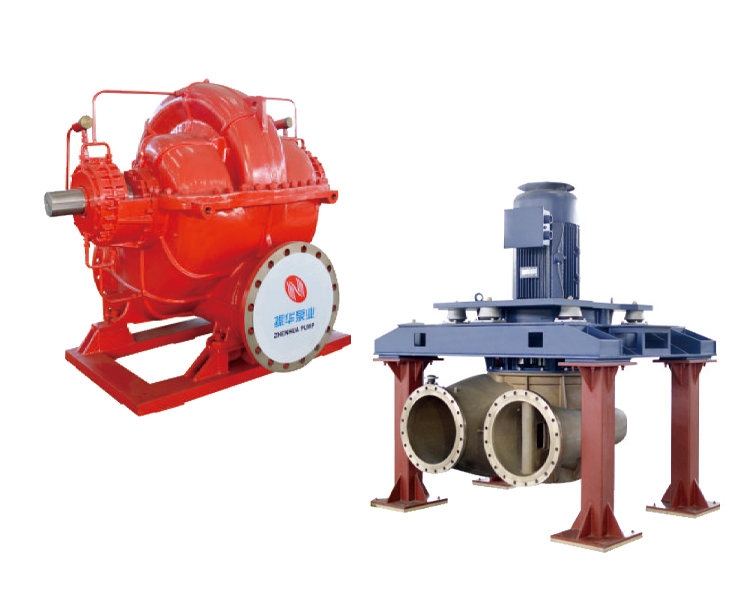

· 大型离心泵 Large centrifugal pump

有立式，有卧式。有单级单吸，双级双吸，单级双吸等等多种结构，满足不同要求。应用于各类大型救助船、散货船、打捞船、渔政船、登陆舰等军船、民船。

◆流量范围: 300-4300m³/h

◆扬程范围: 25-300m

◆最大配用功率: 2500kW

To satisfy different requirements, this series of pump has different types like vertical and horizontal type, and different structures like single-stage single-suction, double-stage double-suction, and single-stage double-suction. This series of pumps applies in various kinds of large warship or civil ship like rescue ship, bulk carrier, salvage ship, fishery administration vessel and landing ship.

◆Capacity range: 300-4300m³/h

◆Head range: 25-300m

◆Max. matched power: 2500kW

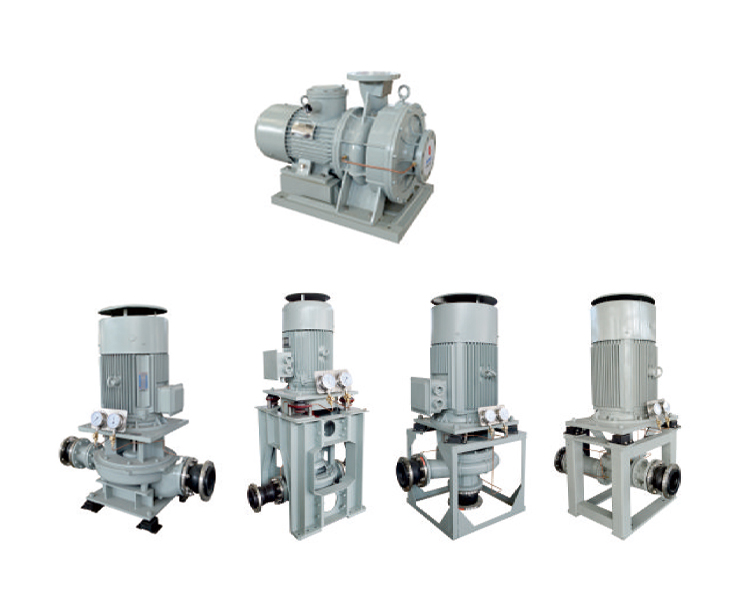

· 低噪声低振动泵组 Low-noise pump unit

减振降噪要求高的泵组实现了电机、泵、减振装置、控制系统一体化设计、制造。建立了测试、分析系统。建立了一条从铸造到机加工到装配整个生产流程相适应的减振降噪泵工艺流程。

◆流量范围: 3-2500m³/h ◆扬程范围: 15-60m ◆电机功率: 3-250KW ◆空气噪声(20Hz-10KHz): 43-80dB(A)

◆机脚振动加速度(10Hz-10kHz): 101-128dB ◆低频段振动加速度级(10Hz-315Hz): 90-112dB ◆振动烈度: 0.12-4.5mm/s

We achieved integration design and manufacture of motor, pump, vibration damper and control system for pump with high requirement of vibration and noise reduction. We established test and analysis system. We also established the suitable process for vibration and noise reduction pump from cast, machining to assembly.

◆Capacity range: 3-2500m³/h ◆Head range: 15-60m ◆Motor power: 3-250KW

◆Noise in air (20Hz-10KHz): 43-80dB(A)

◆Seat vibration acceleration (10Hz-10kHz): 101-128dB

◆Vibration acceleration level at low-frequency stage (10Hz-315Hz):90-112dB

◆Vibration intensity: 0.12-4.5mm/s

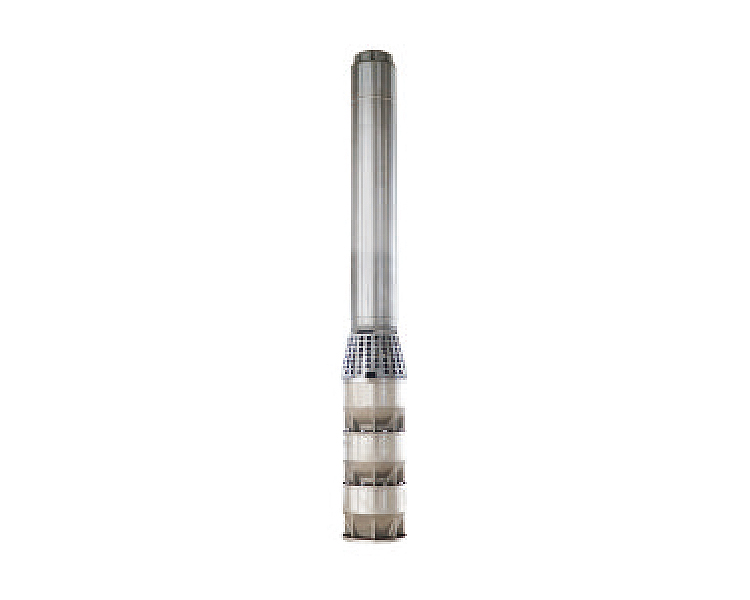

· CSJP型船用海水提升泵组 CSJP series marine sea water lift pump unit

海水提升泵组主要用于海洋海水介质的提升输送。广泛使用在各类石油钻井平台、风电安装维护平台等。也可用于工业和民用深井水提升。

◆流量范围: 50-1500m³/h

◆扬程范围: 15-500m

◆最大配用功率: 350kW

This series of pump mainly applies to lift sea water. This series of pump widely applies in various kinds of oil drilling platform, wind power installation and maintenance platform. This series of pump also applies to lift water in industrial or civil deep well.

◆Capacity range: 50-1500m³/h

◆Head range: 15-500m

◆Max. matched power: 350kW

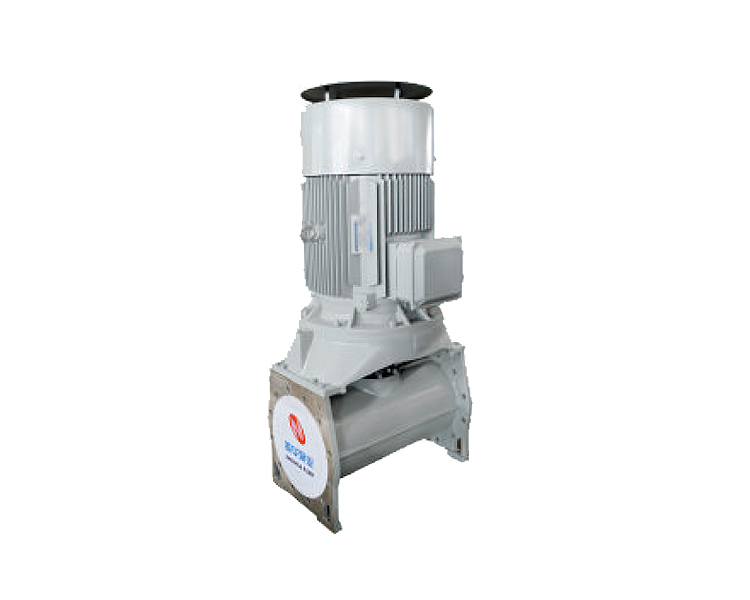

· 船舶横倾泵及控制系统 Marine heeling pump and control system

系统主要由防横倾泵组、平衡舱、遥控阀、传感器、控制模块等组成。防横倾泵结构特点：紧凑、高效、简便、可靠。

◆流量范围: 250-1750m³/h

◆扬程范围: 5-30m

◆最大配用功率: 160kW

This system is composed of anti-heeling pump unit, balance tank, remote control valve, sensor and control module. Advantages of the anti-heeling pump unit: compact, efficient, simple and convenient, reliable.

◆Capacity range: 250-1750m³/h

◆Head range: 5-30m

◆Max. matched power: 160kW

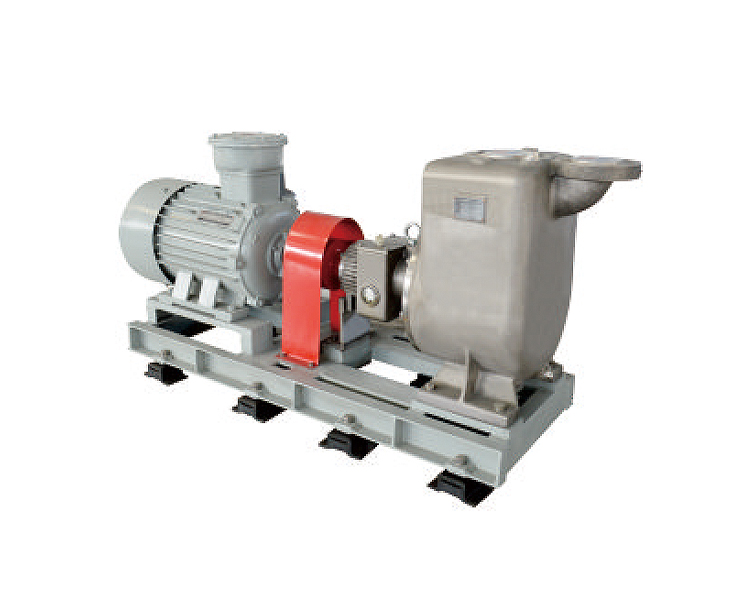

· 航煤泵 Jetfuel pump

航煤泵是油料设施的重要组成部分，主要用于油舱排污、船外卸油、油柜之间驳油、机场油库油料加注和放油。喷气燃料泵组具有吸程离、自吸时间短、以及安全可靠性高等特点，泵组有效控制泵组轴承温升以及机组振动噪声指标。

◆流量范围: 0-300m³h

◆扬程范围: 18-200m

◆最大配用功率: 200kW

Jet fuel pump is the major component of oil installation which mainly applies to discharge dirty for oil chamber, discharge oil outboard, transfer oil between oil tanks, fill and discharge oil fo「 airport oil depot. This series of pumps has advantages of high suction lift, short self-priming time, high safety reliability and ability of controlling temperature rise of pump bearing and vibration noise.

◆Capacity range: 0-300m³/h

◆Head range: 18-200m

◆Max.matched power: 200kW

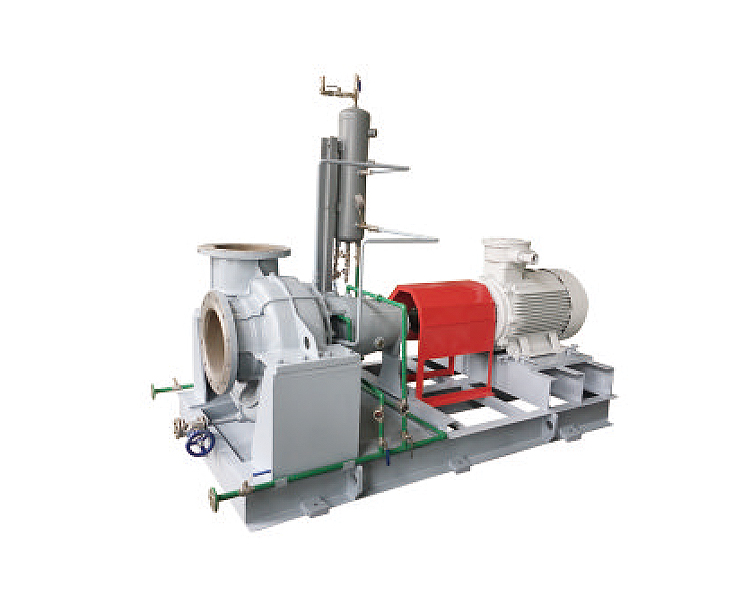

· 化工泵 Chemical pump

在化工行业领域内主要生产各类化工泵，能输送酸、碱、盐溶液、强氧化剂。生产的化工泵广泛应用于化工、石油、农药、酸洗、染料、造纸、电锻等行业。

◆流量范围: 0-2600m³/h

◆扬程范围: 10-250m

◆最大配用功率: 500kW

◆工作温度: -80℃~450℃

The company produces various kinds of chemical pump in chemical industry. This series of pumps transfers acid, alkali, saline solution and strong oxidant, which widely applies in field of chemistry, petroleum, pesticide, acid pickling, dye, papermaking and electroplate.

◆Capacity range: 0-2600m³/h

◆Head range: 10-250m

◆Max. matched power: 500kW

◆Working temp: -80℃~450℃

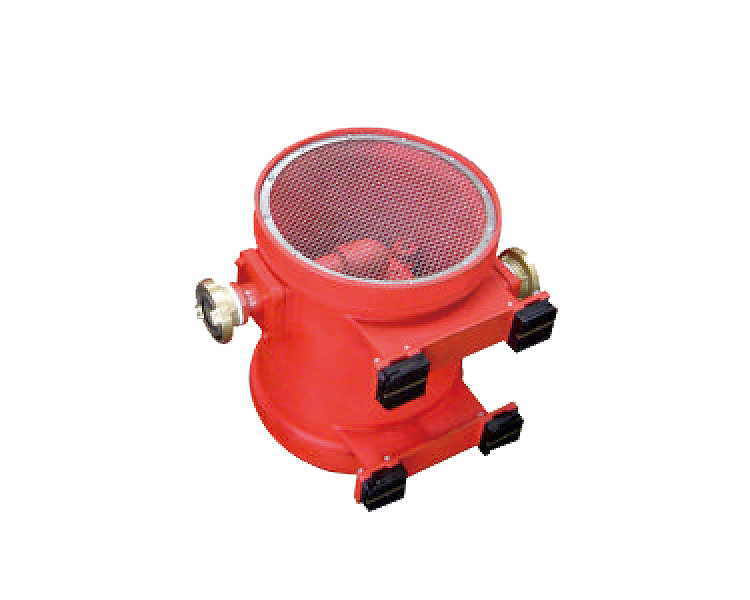

· 可移式水力风机 Portable hydraulic fan

可移式水力风机主要用于抽除舱室内的浓烟、油气以及焊接产生的有害气体。具有便携（小于36公斤），无电力驱动要求，防爆，由于采用磁性底座，安装固定极为方便等特点。

◆风量: 2500-4300m³/h

◆额定风压: 190-330Pa

This series mainly applies to remove dense smoke, oil gas and noxious gas produced by welding in cabin with the advantages of portability (smaller than 36kg), no requirements of electric drive, explosion protection and easy installation and fixation because of the adoption of magnetic base.

◆Air volume: 2500m-4300m³/h

◆Rated wind pressure: 190-330Pa

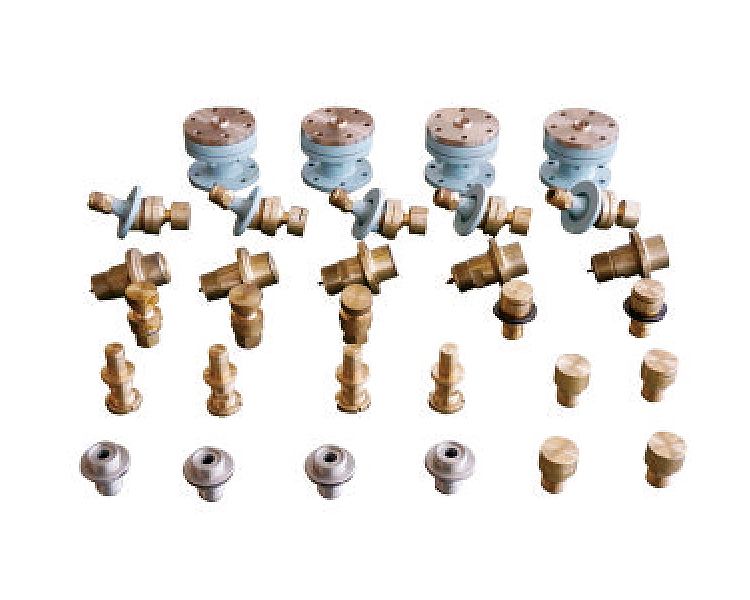

· 水幕喷头 Hydraulic spray head

水幕喷头以消防总管的压力作工作动力，压力通过水苺喷头喷出后形成水幕。水幕喷头用于舰船的防护系统，亦可作为特种船舶的舱面防火，降温设施。

◆工作压力: 0.2-1.2Mpa

◆喷水量: 1.2L/s-15m³/h

This series uses pressure of fire main pipe as working power. The pressure sprayed through hydraulic spray head forms water curtain. Hydraulic spray head applies in marine protection system. This series also works as deck fireproofing and cooling device on special ship.

◆Working pressure: 0.2-1.2Mpa

◆Injection flow: 1.2L/s-15m³/h

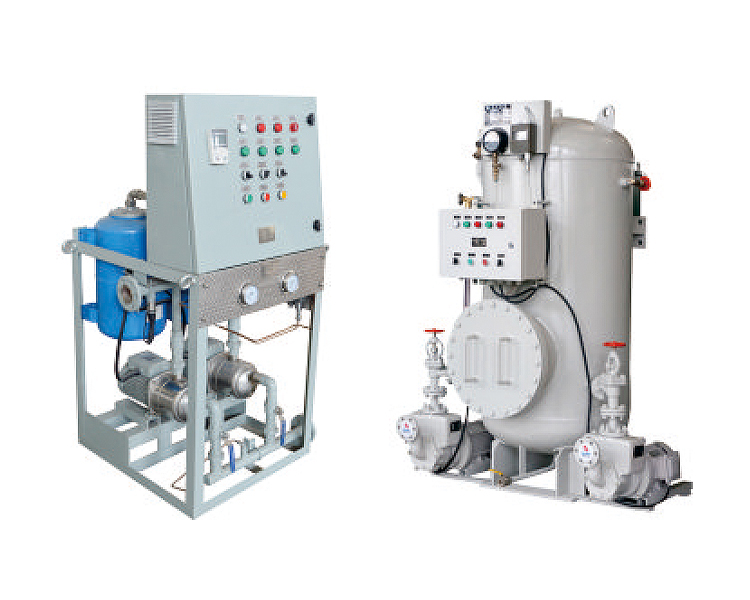

· 压力水柜及变频供水系统 Pressure tank and variable frequency water supply system

压力水柜适用于船舶及钻井平台上生活用淡水管系和卫生用水管系。分为组合柜、单柜及热水柜。

◆容积: 0.12-1.5m³

◆工作压力: 0.4Mpa 变频恒压供水系统，主要为舰船上提供日常用水需求，具有体积小操控方便，节能环保。可完全替代原有的压力水柜。

◆稳压范围: 0.3-0.35MPa内可设定

◆最大流量: 8m³/h -36m³/h

Pressure tank, including combination tank, single-stage tank and hot water tank, applies in domestic fresh water pipe and sanitary water pipe on ship and well drilling platform.

◆Volume: 0.12-1.5m³

◆Working pressure: 0.4Mpa Water supply system with variable frequency & constant pressure mainly supplies daily water on ship which has advantages of small volume, easy operation, energy saving and environmental protection. This series can totally replace the original pressure tank.

◆Steady pressure range: 0.3-0.35MPa

◆Max. capacity: 8m³/h-36m³/h

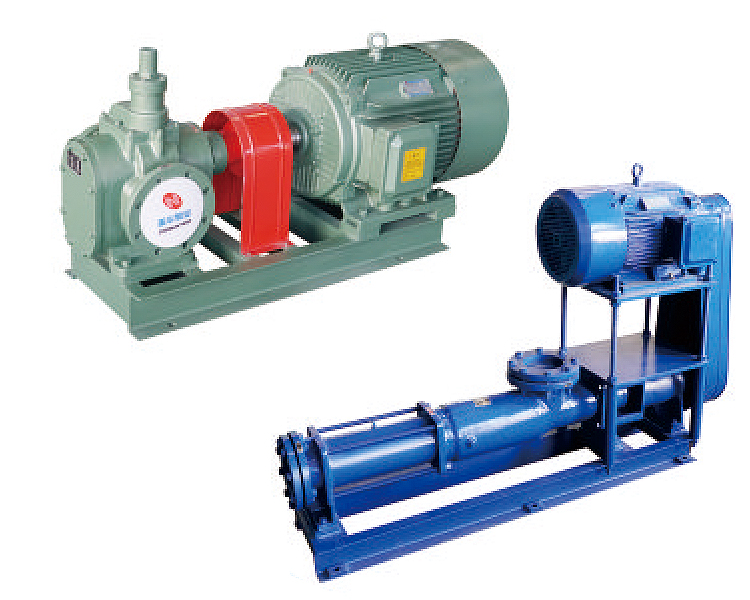

· 油泵 Oil pump

螺杆泵可用于输送中性或腐蚀性液体，洁净的或磨损的液体，含有气体或易产生气泡的液体，高粘度或低粘度的液体，包括含有纤维物和固体物质的液体。产品应用极为广泛，包括石油、化工、造船、核工业等行业。

◆流量范围: 0.2-590m³/h ◆最高压力: 100bar

◆最大配用功率: 500kW 齿轮泵适用于输送重油、机械油、燃油及不含固体颗粒、纤维的石油、化工等液态物质。该型号配有安全阀，能防止过载而对泵和电机造成损坏。

◆流量范围: 18.3-9600L/min ◆工作压力: 0.363-1.45MPa ◆最大配用功率: 100kW

Screw pump transfers neutral or corrosive liquid, clean or abrasive liquid, liquid with gas or easily produce bubble, liquid of high or low viscosity including liquid with fiber and solid This series of pump widely applies in field of petroleum, chemistry, ship building or nuclear.

◆Capacity range: 0.2-590m³/h ◆Max. pressure: 100bar

◆Max. matched power: 500kW Gear pump transfers heavy oil, mechanical oil, fuel and petrolic or chemical liquid without partical or fiber. This series of pump is equipped with safety valve which can avoid damage to pump and motor caused by overload.

◆Capacity range: 18.3-9600L/min ◆Working pressure: 0.363-1.45MPa ◆Max. matched power: 100 kW

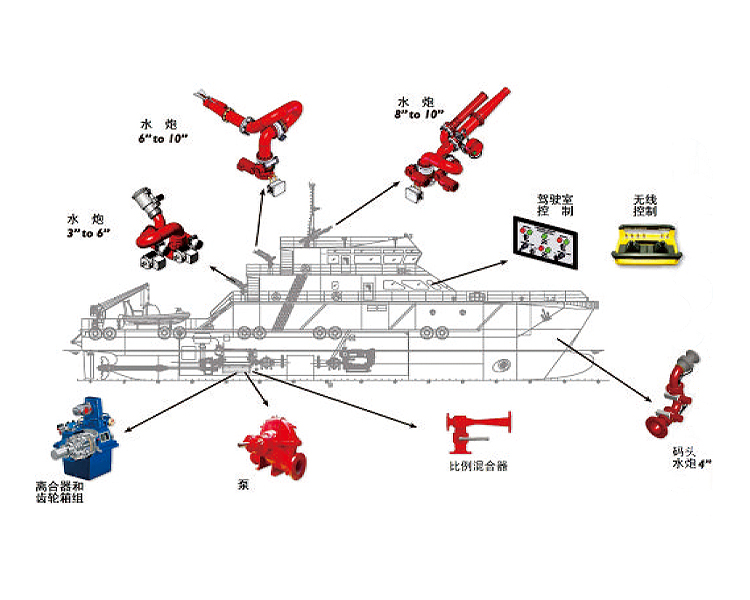

· 船用（对外）消防、防器系统 Marine(external) fire fighting and anti-terrorist system

船用（对外）消防系统主要应用于消防船、拖船及海上平台，用于对外扑救船舶火灾，目前公司产品可超过FiFi lll的要求。

防暴系统作为执法性武器，应用于海监、渔政、公安边防等执法船，最大冲击射程可达200m。

Marine (external) fire fighting system mainly applies for fire-fighting ship, tugboat and platform on sea to put out fire disaster on the other ship.This series produced by our company surpasses the requirements of FiFi Ill.

Anti-terrorist system is a weapon to enforce the law. It is applied for law-enforcing ships like marine surveillance, fishery administration and public security frontier. The max. range can reach 200m.
